Commercial and industrial-grade luminaires, bollards, and poles. Spec sheets available for every product.
Three product families covering 70–600W, all built with 0.08" aluminum housing and Philips LED technology.

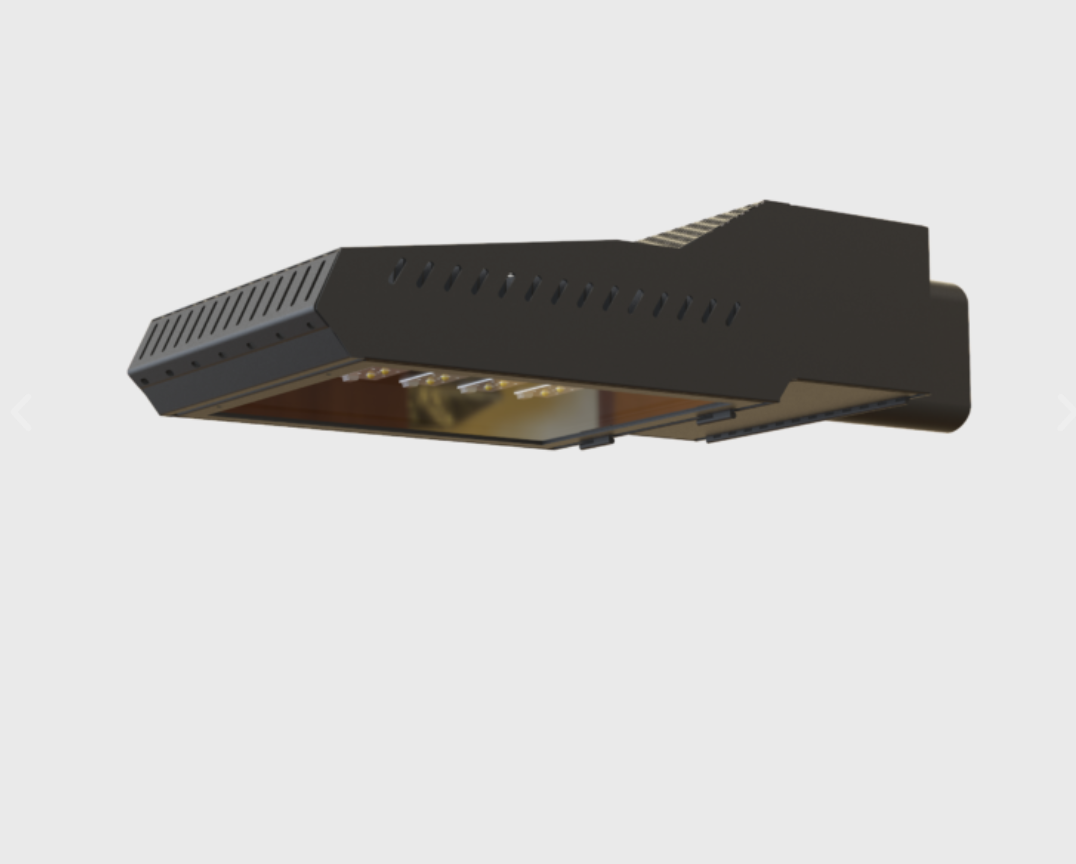

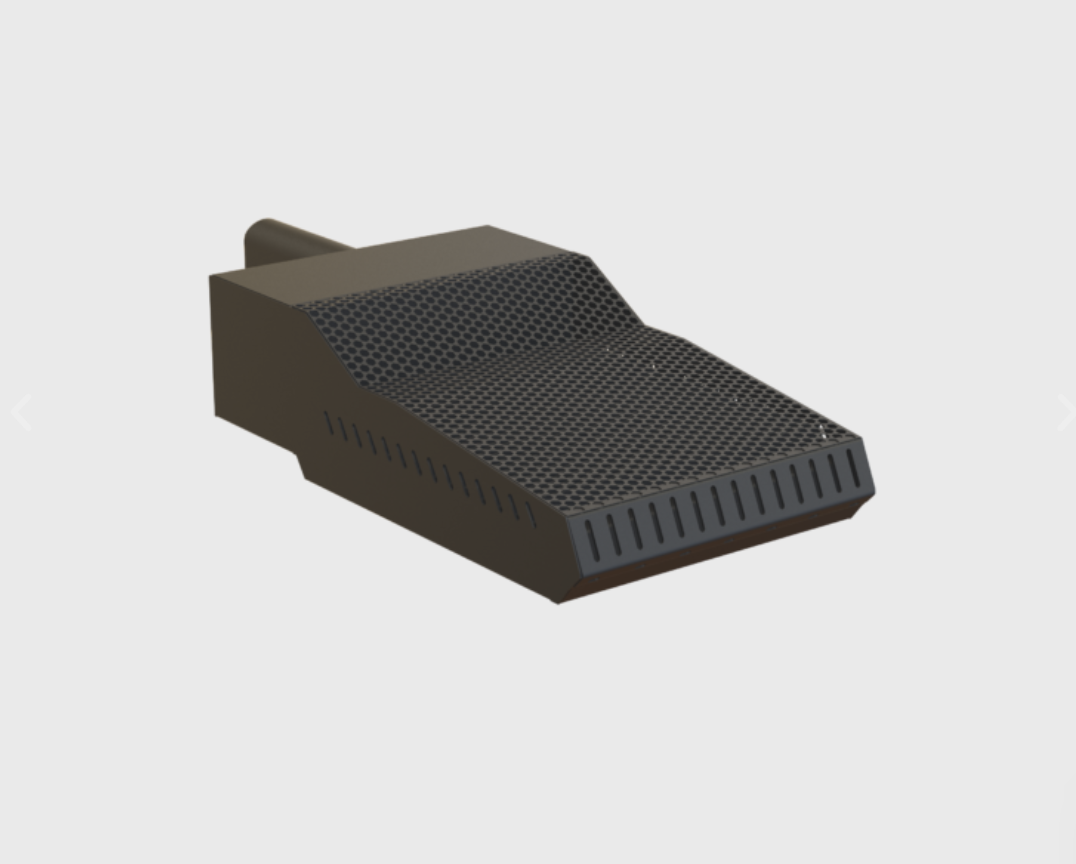

Low-profile area luminaire with modern design that blends seamlessly into the horizon. One of the most durable fixtures on the market thanks to its 0.08" aluminum construction and latest Philips onboard driver and LEDs.

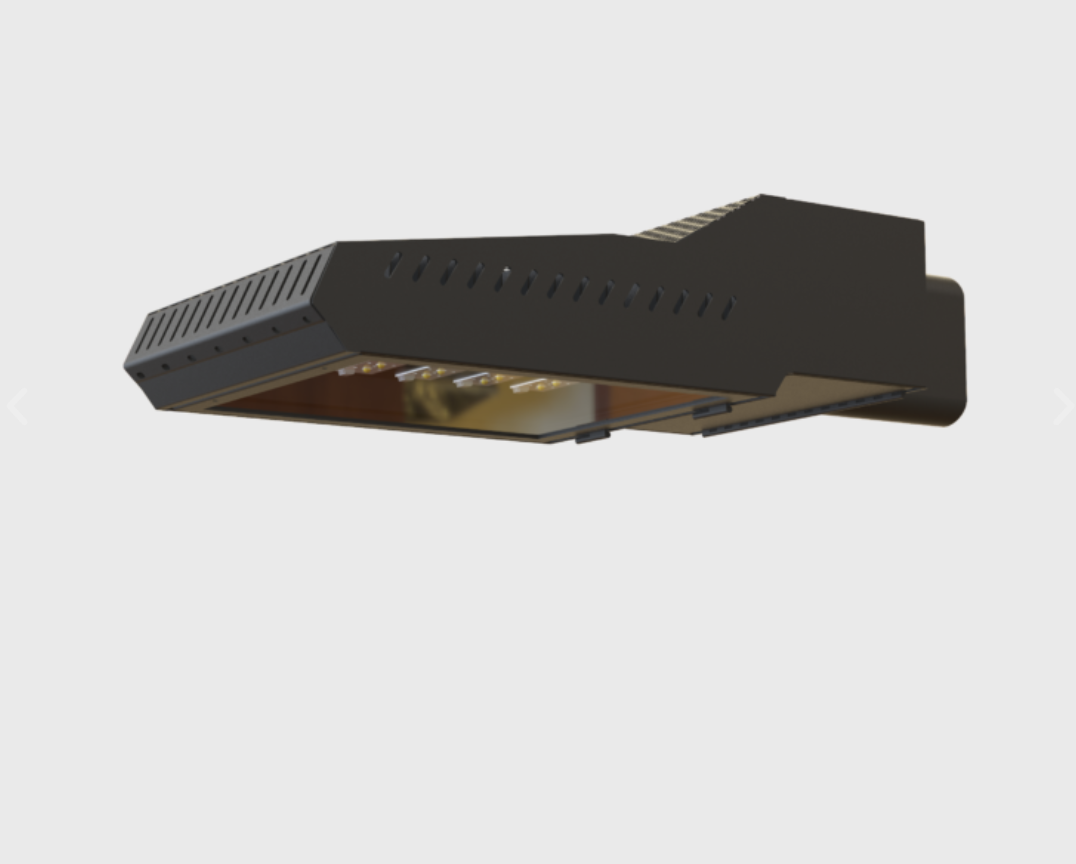

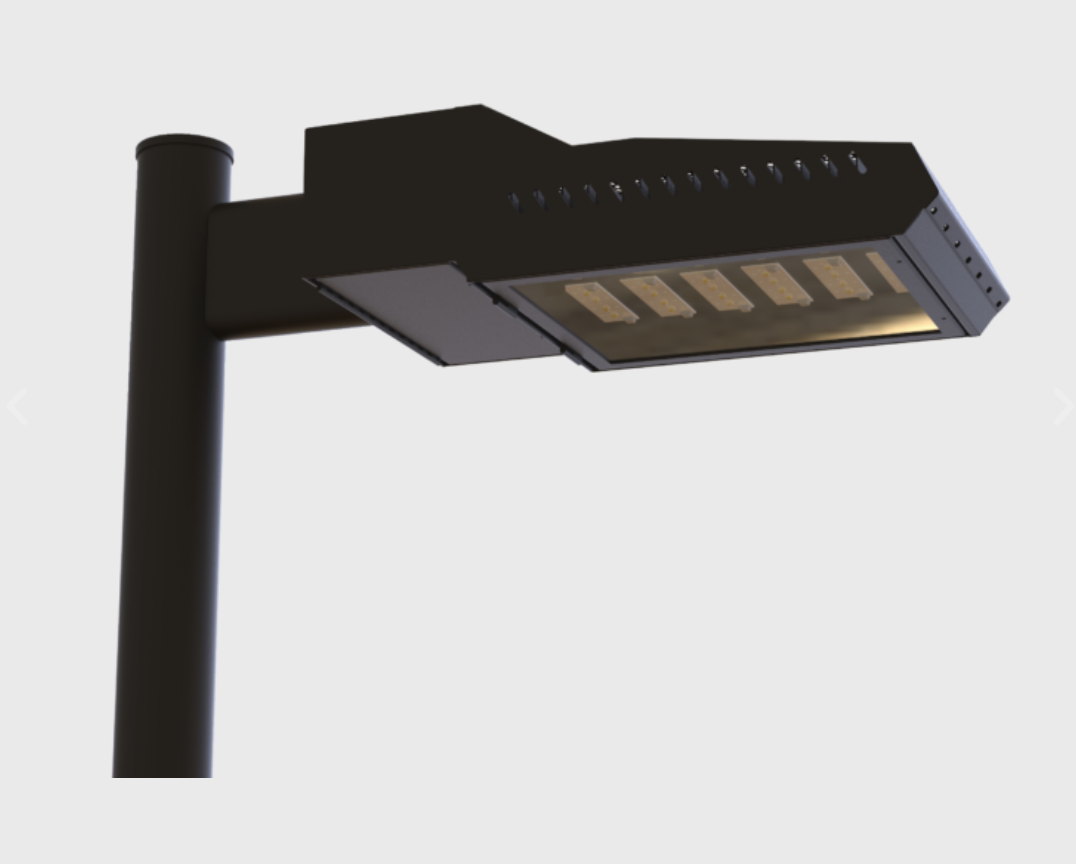

The high-output version of the Patriot - same low-profile modern design scaled up for larger coverage areas. Philips driver and LED technology with durable aluminum housing.

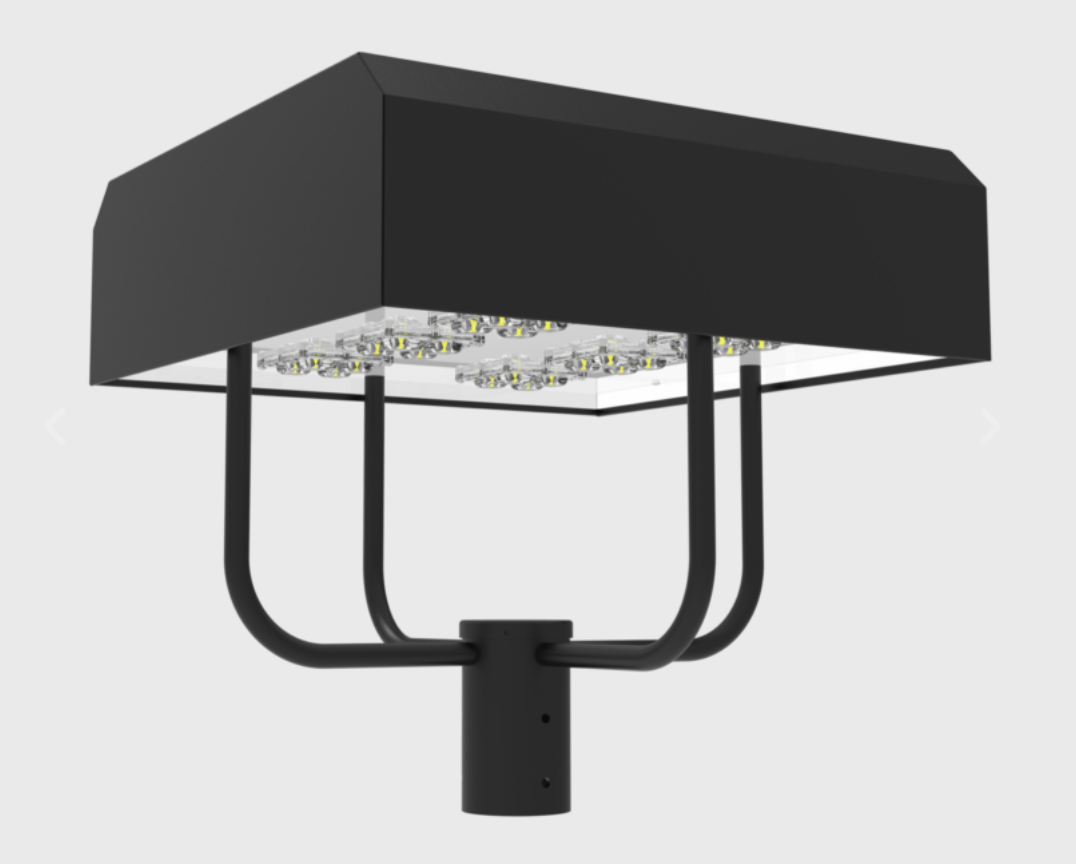

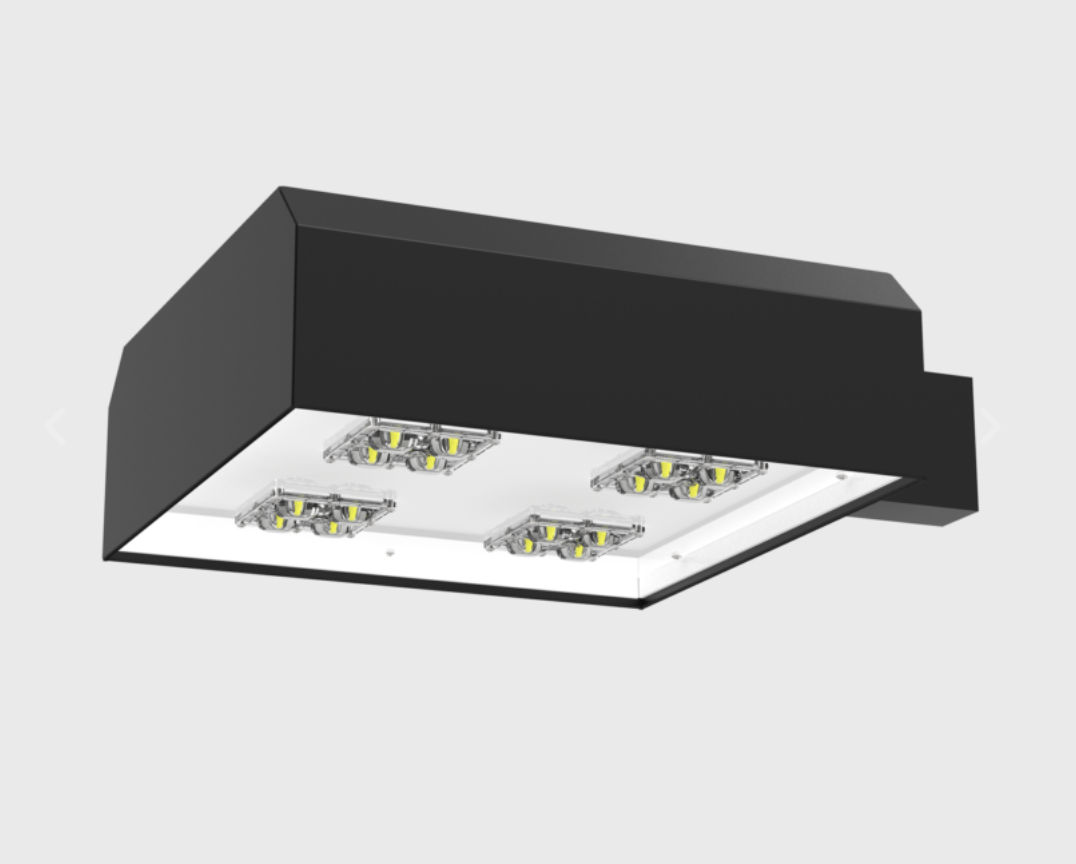

Traditional design with minimal visual profile. Available in two sizes with arm mount and spider mount configurations. Acrylic and silicone optics with the latest Philips LED technology.
Recessed full cut-off LED wall pack with 250,000-hour L70 lifespan and multiple finish options.
Slim-line recessed LED wall pack with full cut-off design to reduce light pollution. Multiple finish options. Optional Full Cut-Off Guard (FCG) available for residential and sports field use. Philips drivers and LEDs.
Architectural pathway lighting with 200,000+ hour LED lifespan. Made & assembled in the USA.
Decorative bollard providing equal light distribution in all directions. 0.125" extruded aluminum construction. Custom heights available. Proudly made and assembled in the USA.
Modern curved bollard making a bold architectural statement. Full cut distribution with 4" extruded aluminum at standard 42" height. Custom heights available. Proudly designed, made and assembled in the USA.
ASTM-rated steel and 6063 aluminum poles available in square, round, and tapered profiles. Powder coat or galvanized finish.
Grade B steel extrusion conforming to ASTM A500 at 46,000 PSI yield. Base manufactured to ASTM-A36 standards at 36,000 PSI.
| Spec | Detail |
|---|---|
| Wall Thickness | 11 Ga (.120") or 7 Ga (.180") |
| Bolt Circle | 9" or 12", 4-bolt pattern |
| Anchor Bolts | 3/4"×30" or 1"×36" J-hook, galvanized |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |
Grade B steel extrusion at 46,000 PSI, ASTM A500 compliant. ASTM-A36 base at 36,000 PSI. Hot-dipped galvanized anchor bolts included.
| Spec | Detail |
|---|---|
| Wall Thickness | 11 Ga (.120") or 7 Ga (.188") |
| Bolt Circle | 9" or 12", 4-bolt pattern |
| Anchor Bolts | 3/4"×30" or 1"×36" J-hook, galvanized |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |
6063 alloy aluminum extrusion with internal welding. Lightweight yet structurally sound for commercial applications.
| Spec | Detail |
|---|---|
| Wall Thickness | 0.125", 0.188", or 0.250" |
| Base (10'–20') | 3/4" aluminum; 22'+ poles: 1" |
| Bolt Circle | 9" or 12", 4-bolt pattern |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |
6063 alloy aluminum round extrusion. Ideal for coastal and corrosive environments where steel is less suitable.
| Spec | Detail |
|---|---|
| Wall Thickness | 0.125", 0.188", or 0.250" |
| Base (10'–20') | 3/4" aluminum; 22'+ poles: 1" |
| Bolt Circle | 9" or 12", 4-bolt pattern |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |
Hot rolled steel conforming to ASTM A500 at 55,000 PSI - the highest-strength pole in the lineup. Tapered profile for a refined look on larger installations.
| Spec | Detail |
|---|---|
| Wall Thickness | 120" length: 11 Ga; 180" length: 7 Ga |
| Bolt Circle | 12"–15", 4-bolt pattern |
| Anchor Bolts | 1"×36" J-hook, hot dipped galvanized |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |
Grade B steel at 46,000 PSI conforming to ASTM A500. Designed for EV charging pedestal and ground-level applications at 120" height.
| Spec | Detail |
|---|---|
| Wall Thickness | 11 Gauge |
| Height | 120" |
| Bolt Circle | 9"–12", 4-bolt pattern |
| Anchor Bolts | 1/2"×18"×4" J-hook, galvanized |
| Finish | 3–5 mils powder coat; galvanized available |
2-piece clamshell cast aluminum A356 bases for pathway, residential, and commercial installations.
2-piece clamshell cast aluminum A356 decorative base. Powder coat finish, 3 mils. Designed for pathways and commercial or residential projects.
| Spec | Detail |
|---|---|
| Height | 18½" |
| Base O.D. | 16⅞" O.D. |
| Base Plate | 9" Square |
| Compatible | 4" or 5" O.D. - Steel round 11 or 7 Ga; Aluminum round .125" or .187" |
2-piece clamshell cast aluminum A356 decorative base. Powder coat finish, 3 mils. Designed for pathways and commercial or residential projects.
| Spec | Detail |
|---|---|
| Height | 8.5" |
| Base O.D. | 16" O.D. |
| Base Plate | 9" Square |
| Compatible | 4" or 5" O.D. - Steel round 11 or 7 Ga; Aluminum round .125" or .187" |
2-piece clamshell cast aluminum A356 decorative base. Powder coat finish, 3 mils. Designed for pathways and commercial or residential projects.
| Spec | Detail |
|---|---|
| Height | 21" |
| Base O.D. | 16" O.D. |
| Base Plate | 9" Square |
| Compatible | 4" or 5" O.D. - Steel round 11 or 7 Ga; Aluminum round .125" or .187" |
2-piece clamshell cast aluminum A356 decorative base. Powder coat finish, 3 mils. Designed for pathways and commercial or residential projects.
| Spec | Detail |
|---|---|
| Height | 32" |
| Base O.D. | 15.5" O.D. |
| Base Plate | 9" Square |
| Compatible | 4" or 5" O.D. - Steel round 11 or 7 Ga; Aluminum round .125" or .187" |
We customize projects for our clients. Contact us with your specifications and we'll make it work.
