ASTM-rated steel and aluminum poles in square, round, and tapered profiles. Powder coat or galvanized finish.
ASTM-rated steel and 6063 aluminum poles available in square, round, and tapered profiles. Powder coat or galvanized finish.

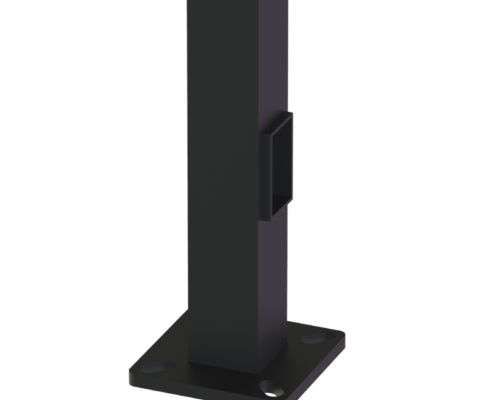

Grade B steel extrusion conforming to ASTM A500 at 46,000 PSI yield. Base manufactured to ASTM-A36 standards at 36,000 PSI.
| Spec | Detail |
|---|---|
| Wall Thickness | 11 Ga (.120") or 7 Ga (.180") |
| Bolt Circle | 9" or 12", 4-bolt pattern |
| Anchor Bolts | 3/4"×30" or 1"×36" J-hook, galvanized |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |

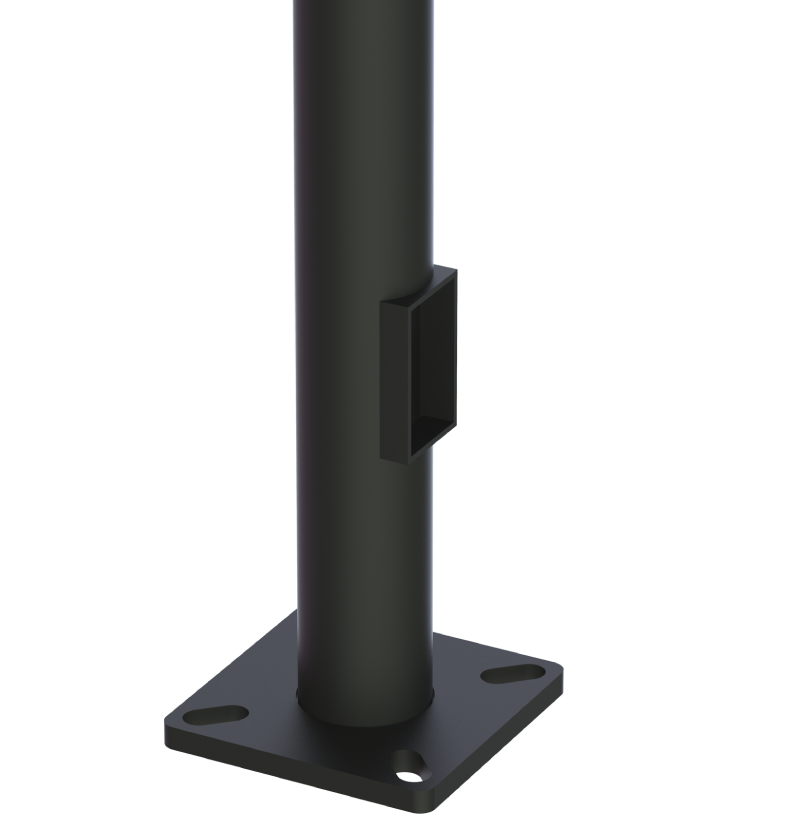

Grade B steel extrusion at 46,000 PSI, ASTM A500 compliant. ASTM-A36 base at 36,000 PSI. Hot-dipped galvanized anchor bolts included.
| Spec | Detail |
|---|---|
| Wall Thickness | 11 Ga (.120") or 7 Ga (.188") |
| Bolt Circle | 9" or 12", 4-bolt pattern |
| Anchor Bolts | 3/4"×30" or 1"×36" J-hook, galvanized |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |

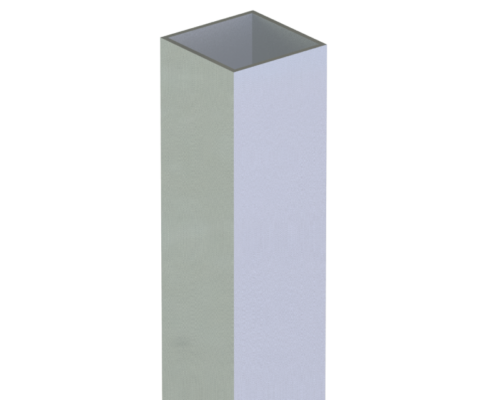

6063 alloy aluminum extrusion with internal welding. Lightweight yet structurally sound for commercial applications.
| Spec | Detail |
|---|---|
| Wall Thickness | 0.125", 0.188", or 0.250" |
| Base (10'–20') | 3/4" aluminum; 22'+ poles: 1" |
| Bolt Circle | 9" or 12", 4-bolt pattern |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |

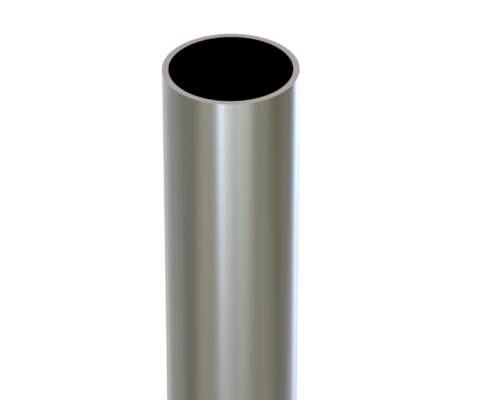

6063 alloy aluminum round extrusion. Ideal for coastal and corrosive environments where steel is less suitable.
| Spec | Detail |
|---|---|
| Wall Thickness | 0.125", 0.188", or 0.250" |
| Base (10'–20') | 3/4" aluminum; 22'+ poles: 1" |
| Bolt Circle | 9" or 12", 4-bolt pattern |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |

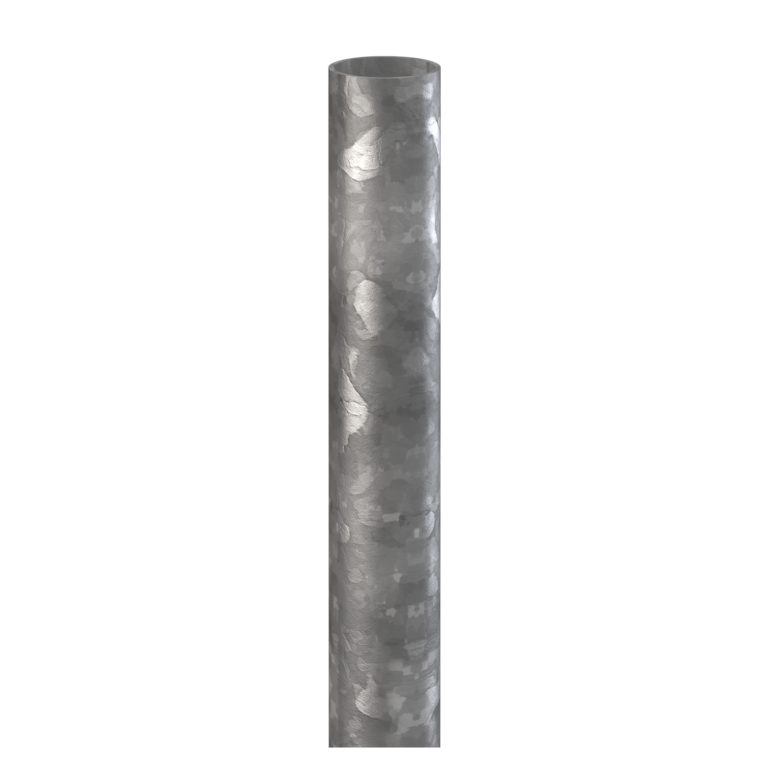

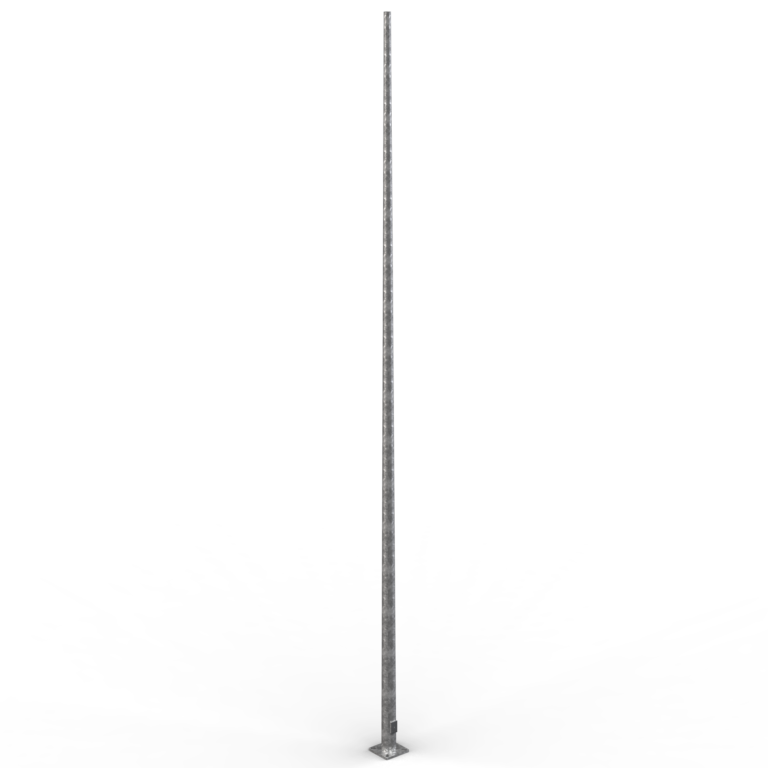

Hot rolled steel conforming to ASTM A500 at 55,000 PSI - the highest-strength pole in the lineup. Tapered profile for a refined look on larger installations.
| Spec | Detail |
|---|---|
| Wall Thickness | 120" length: 11 Ga; 180" length: 7 Ga |
| Bolt Circle | 12"–15", 4-bolt pattern |
| Anchor Bolts | 1"×36" J-hook, hot dipped galvanized |
| Finish | 3–5 mils powder coat; galvanized available |
| Includes | Hand hole, pole cap |

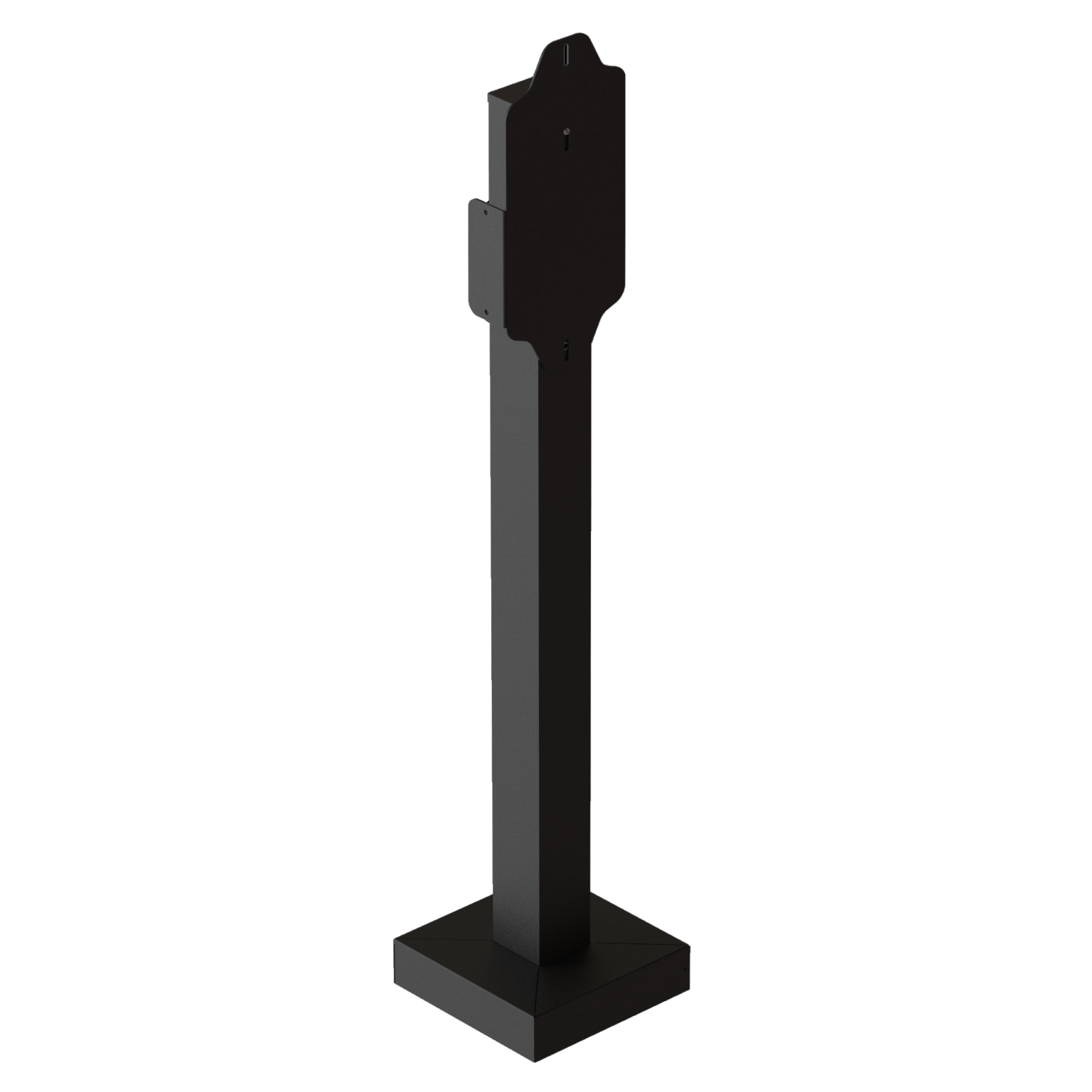

Grade B steel at 46,000 PSI conforming to ASTM A500. Designed for EV charging pedestal and ground-level applications at 120" height.
| Spec | Detail |
|---|---|
| Wall Thickness | 11 Gauge |
| Height | 120" |
| Bolt Circle | 9"–12", 4-bolt pattern |
| Anchor Bolts | 1/2"×18"×4" J-hook, galvanized |
| Finish | 3–5 mils powder coat; galvanized available |
We customize projects for our clients. Contact us with your specifications and we'll make it work.
